10,000 layers in one chicken house
Equipment: Chicken cage with full set of the automatic equipment, including the automatic feeding, drinking, manure removing, egg collecting, ventilation system.
Cage type: A-type, 4-tier, 4-door, 128birds/set.

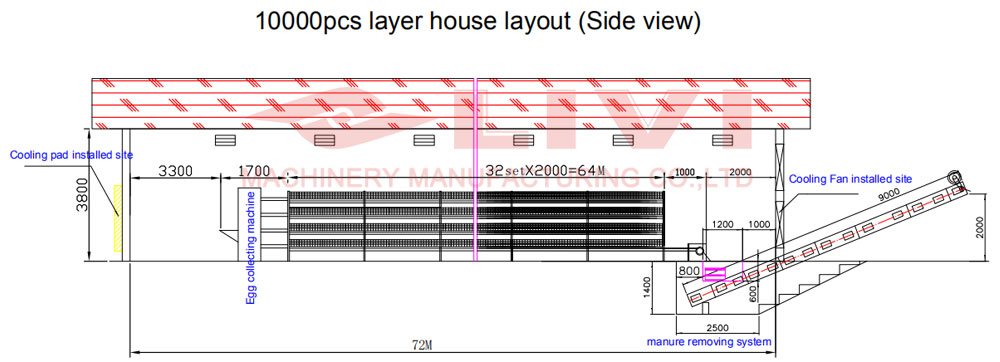

Layout: 40sets/row, 2rows/house, 80sets/house.

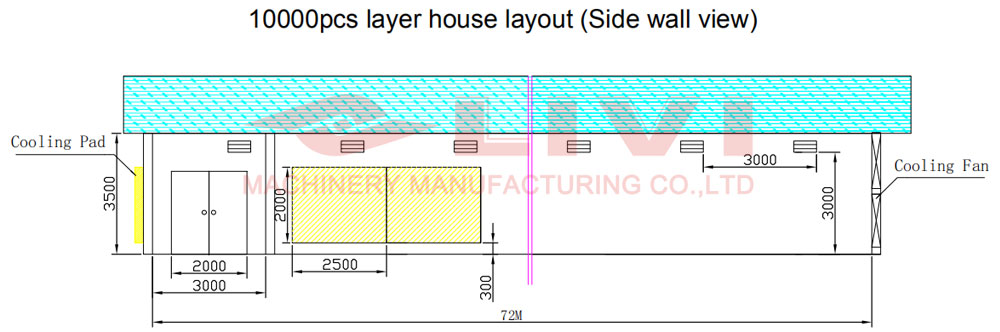

Size of the chicken house: 86M * 7.5M * 2.8M.
Total capacity of one chicken house: 128birds/set * 40sets/row * 2rows= 10,240birds/house.
Chicken cage: 56sets.
Automatic feeding machine: 1sets, Gantry-type, one set drives 2rows.
Scraper manure removing system: 1sets, one set drive 2 rows.
Automatic egg collecting system: 2sets, each row one set.
Ventilation system:
1. Cooling fan: 4sets. size: 1.4M * 1.4M, installed on the behind of the wall.
2. Cooling pad: 6Pcs. size: 2.5M * 2M, installed on the front & side of the wall.
3. Small side windows: 56Pcs. size: 600mm * 300mm, installed on the side wall.
Basis:
1. As for the manure removing system, we recommend you the scraper type, one set could work for 2 rows at the same time, compared with the belt-type, the cost is lower, also the equipment works better only if the length of the chicken house is within 90M.
2. As for the Cage type, we recommend you the A-type, 4-tier, because it could feed more chickens one set compared with the 3-tier.
3. The cage we recommend you is our normal cage, and the delivery time will be much earlier.
4. As for the feeding machine, one set could work for 2rows, also equipped with the hoister and transverse feeding machine, which could realize the transportation of the feed from the silo to the trough.
5. Equipped with the ventilation system, which could let the ammonia out in time, to keep the chicken house fresh, and could keep the temperature within 24~28 degree, which could avoid the disease occurance.
6. Equipped with the automatic egg collecting system, each row one set, because the height of the chicken cage is 1.8M, maybe not so convenient for you to collect the egg, so we suggest you have one.
Advantage:
1. As for the feeding and manure removing system, one set could work for 2 rows, the price is lower, which is not so difficult for you to start this project.
2. The equipment within one chicken house are all automatic, one man could finish all the work within one chicken house.
3. Less man walk in the chicken house, which could decrease the disease rate.
4. The Gantry feeding machine is equipped with the disinfection system, which could realize the disinfection of the chicken house.
